Value Delivered

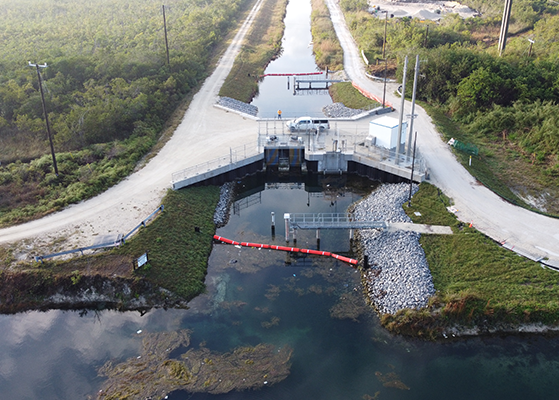

Our team provided general contracting services for the construction of a new pump station for United States Army Corps of Engineers (USACE). Station S-705 has a capacity of 100 cubic feet per second and pumps water into an L-31E Canal then flows through culverts into wetlands east of the L-31E Levee.
The station features a 72-inch culvert with a slide gate for internal drainage, manatee-protective barriers, trash racks, and dewatering features, all complete with stoplogs. The side gate is operated by an electric motor actuator, and remote controls are in a stand-alone precast concrete building adjacent to the pump station.
Client Objectives
The USACE designed the S-705 pump station to help with drainage along the L-31E Canal.
Solutions
Harry Pepper provided the construction and installation of the following:
- Steelcon pile and wingwall system
- Over 1,500 cubic yards of cast-in-place concrete
- Over 500 tons of reinforcing steel
- High-density polyethylene (HDPE) culvert
- Slide gate
- Control building
- Pumps, platforms, and controls
- Mechanical and HVAC systems
- Electrical, including lighting and lightning protection
- Earthwork and fencing
- Stilling wells and platforms
- Cofferdams
- In-water construction utilizing divers
Client Background
The USACE carries out natural and cultural resource management programs at its water resources projects and regulates activities in the Nation’s wetlands.
